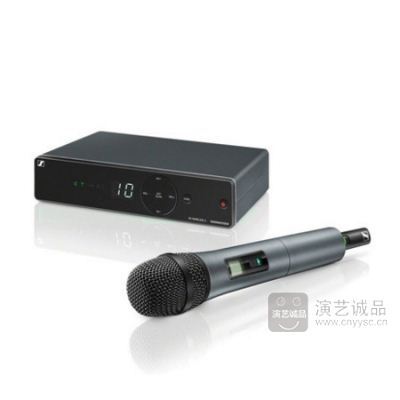

新品无线蓝牙专业舞台话筒XSW1-835
技术数据
尺寸 approx. 200 x 42 x 127 mm
THD，总谐波失真 ≤ 0.9%
拾音模式 cardioid
信噪比 ≥ 103 dBA
RF 输出功率 10 mW
频点可调范围 up to 24MHz
工作时间 approx. 10 hrs
调制 wideband FM
输出电压 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced):+12 dBu
外壳 rugged ABShousing
动态范围 dynamic
频率 8frequency banks, each with up to 10factory-preset channels
频率范围 A: 548-572 MHz, GB:606-630 MHz
B: 614-638 MHz
C: 766-790 MHz
D: 794-806 MHz
E: 821-832 MHz, 863-865 MHz
K: 925-937.5 MHz
灵敏度 < 3 μV at 52 dB(A)rmsS/N
静噪 adjustable from 3 dBμV to 28 dBμV (combined with pilottone)
同步 2.4 GHz, Low Power OQPSK (onlyactive duringsynchronization)
输入灵敏度 1.5 mV / Pa
Adjustment Range Transmitter 0 to-30 dB, adjustable in 10 dB steps
Audio adjustment range 45dB, adjustable in 5-dB steps
Line / Mic level 20 dB, switchable
Temperature Range operation: 0°C to +40°C,storage: –20°C to +70°C
Receiver Principle doublesuperheterodyne
多样化产品 Antenna switching diversity via internal antennas
接收机
重量 approx. 340g
电源 Receiver:12 V DC nom. / 300 mA
音频频率响应 Receiver: 50 to 16,000 Hz (–3 dB)
话筒
重量 approx. 245g
电源 Microphone: 2 AA sizebatteries, 1.5 V
音频频率响应 SKM 825: 80-14,000 Hz
SKM 835: 80-16,000 Hz
